2D CAD drafting standards ensure architectural drawings are consistent, clear, and accurate. They streamline workflows, enhance collaboration, and reduce errors across projects. Here’s a quick summary:
- What They Cover: Layer naming, line weights, text styles, dimensioning, and sheet setups.
- Why They Matter: Improve communication, comply with regulations, and minimize revisions.
- Key Standards: AIA Layer Guidelines (U.S.), NCS Requirements (U.S.), and ISO Standards (global).
- Implementation Tips: Use manuals, train staff, and conduct regular quality reviews.
Quick Comparison of Standards
| Feature | AIA Guidelines | NCS Requirements | ISO Standards |
|---|---|---|---|
| Primary Market | U.S. Architecture | U.S. Construction | International |
| Layer Naming | Discipline-specific | Unified system | Project-tailored |
| Sheet Organization | Project phases | Construction sequence | Neutral framework |
These standards evolve with technology, integrating with BIM workflows and supporting modern architectural needs. Start with clear guidelines and adapt them to your project’s requirements for better results.
Drawing Standards for Architectural Drawings
Key Elements of 2D CAD Drafting Standards
Drawing Setup Guidelines
Setting up a drawing properly lays the groundwork for a smooth drafting process. Here are some key setup details:
- Units: Use architectural inches (fractional) for U.S.-based projects.
- Scale: Floor plans typically follow a scale of 1/4″ = 1′-0″.
- Sheet Sizes: Stick to standard ANSI sizes (A-E) with the appropriate title blocks.
- Grid Spacing: Commonly set to 16″ or 24″ to align with typical building modules.
BIM Heroes ensures these settings adhere to both local and global standards for consistency and accuracy.
Layer Organization
Organizing layers is crucial for keeping drawings clear and easy to navigate. Here’s a quick breakdown:
| Layer Category | Naming Convention | Color Code | Common Elements |
|---|---|---|---|
| Architecture | A- | Red (1) | Walls, doors, windows |
| Structure | S- | Green (3) | Columns, beams |
| Mechanical | M- | Cyan (4) | HVAC, equipment |
| Electrical | E- | Yellow (2) | Lighting, power |
| Plumbing | P- | Blue (5) | Fixtures, piping |
This structured approach ensures clarity and streamlines workflows, even for complex projects.
Line Standards
Line weights play a big role in making drawings easy to interpret. Here’s how architectural line weights are typically used:
- Heavy (0.70mm): For main cut elements and ground lines.
- Medium (0.35mm): For object lines and primary features.
- Light (0.18mm): For dimension lines and grid lines.
- Extra Light (0.13mm): For hidden lines and hatching.
Text and Annotation Rules
Consistent text formatting ensures your drawings are easy to read. Follow these guidelines:
- Primary Text Height: 3/32″ for drawings at 1/4″ = 1′-0″ scale.
- Title Text: 3/16″ height for main headings.
- Notes: 1/8″ height for general notes.
- Font Style: Stick to Arial or Romans for a clean, professional look.
Dimension Standards
Precise dimensions make all the difference in creating accurate drawings. Key standards include:
- Extension Lines: Extend 1/8″ beyond dimension lines.
- Text Placement: Always centered on dimension lines.
- Arrow Size: 1/8″ length for typical dimensions.
- Spacing: Keep at least 3/8″ between parallel dimensions.
For more complex projects, BIM Heroes tailors these dimensioning practices to meet specific client needs while staying aligned with industry norms.
Major Industry Standards

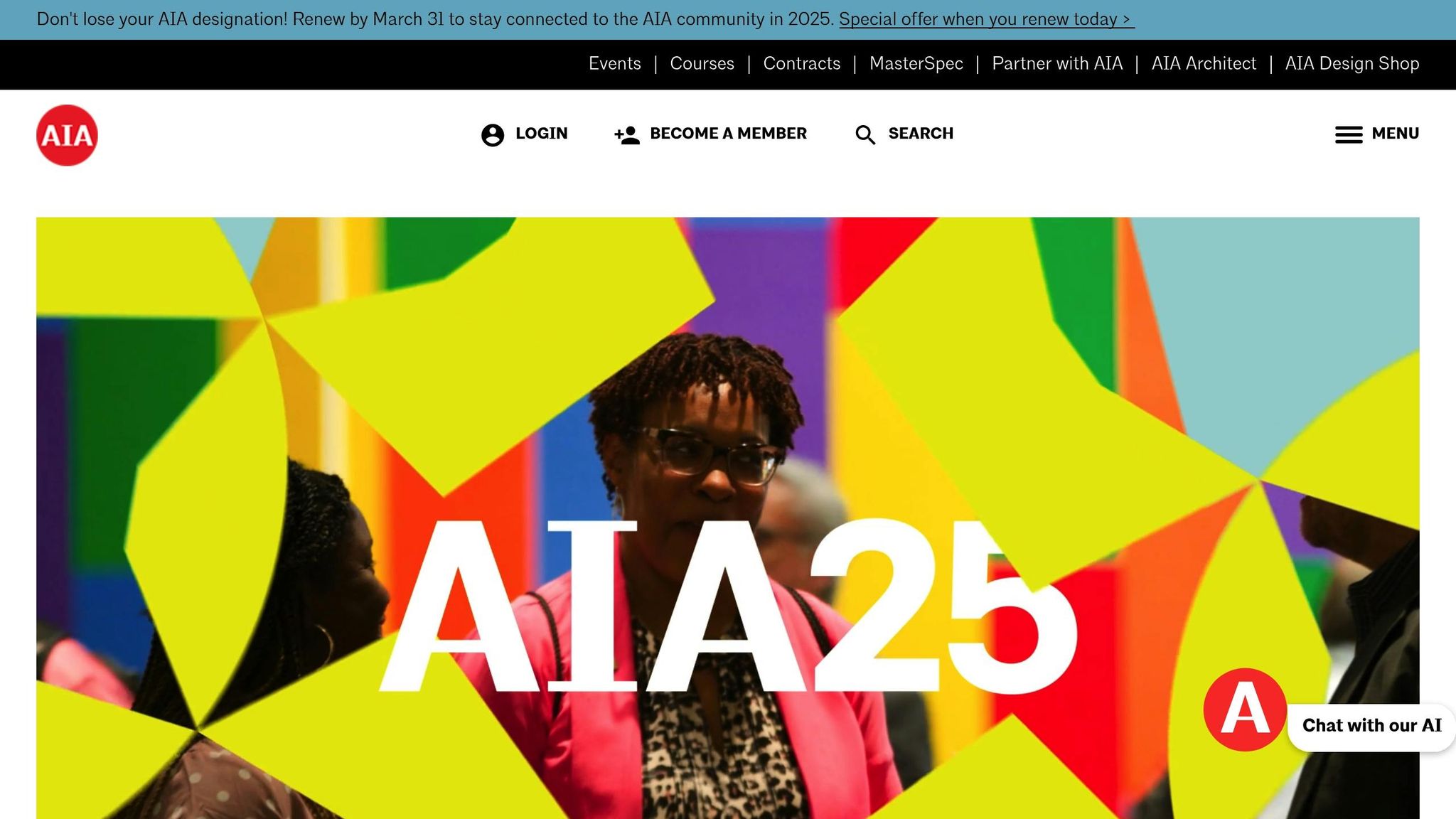

AIA Layer Guidelines
The American Institute of Architects (AIA) CAD Layer Guidelines provide a structured approach to organizing layers in architectural drawings across the United States. These guidelines categorize drawing elements into logical groups using specific prefixes such as:
- A-WALL: walls
- A-FLOR: floors
- A-ROOF: roofs
- A-GLAZ: windows
- A-DOOR: doors
Each prefix can include additional modifiers for more detailed classification, making it easier to share files and collaborate with other firms and consultants.
NCS Requirements
The National CAD Standard (NCS) combines input from several organizations, including the AIA, the Construction Specifications Institute (CSI), and the National Institute of Building Sciences (NIBS). It provides a unified framework for various aspects of CAD documentation. Here are its main components:
| Component | Description | Primary Use |
|---|---|---|
| Drawing Set Organization | A system for sheet identification | Helps organize and index projects |
| Layer Naming | Standardized naming conventions | Simplifies file management |
| Plotting Guidelines | Specifications for output | Ensures consistent drawing quality |
| Drafting Conventions | Standards for symbols and notations | Improves clarity in design communication |
For U.S. projects, BIM Heroes follows NCS standards to ensure compliance with regional codes and practices.

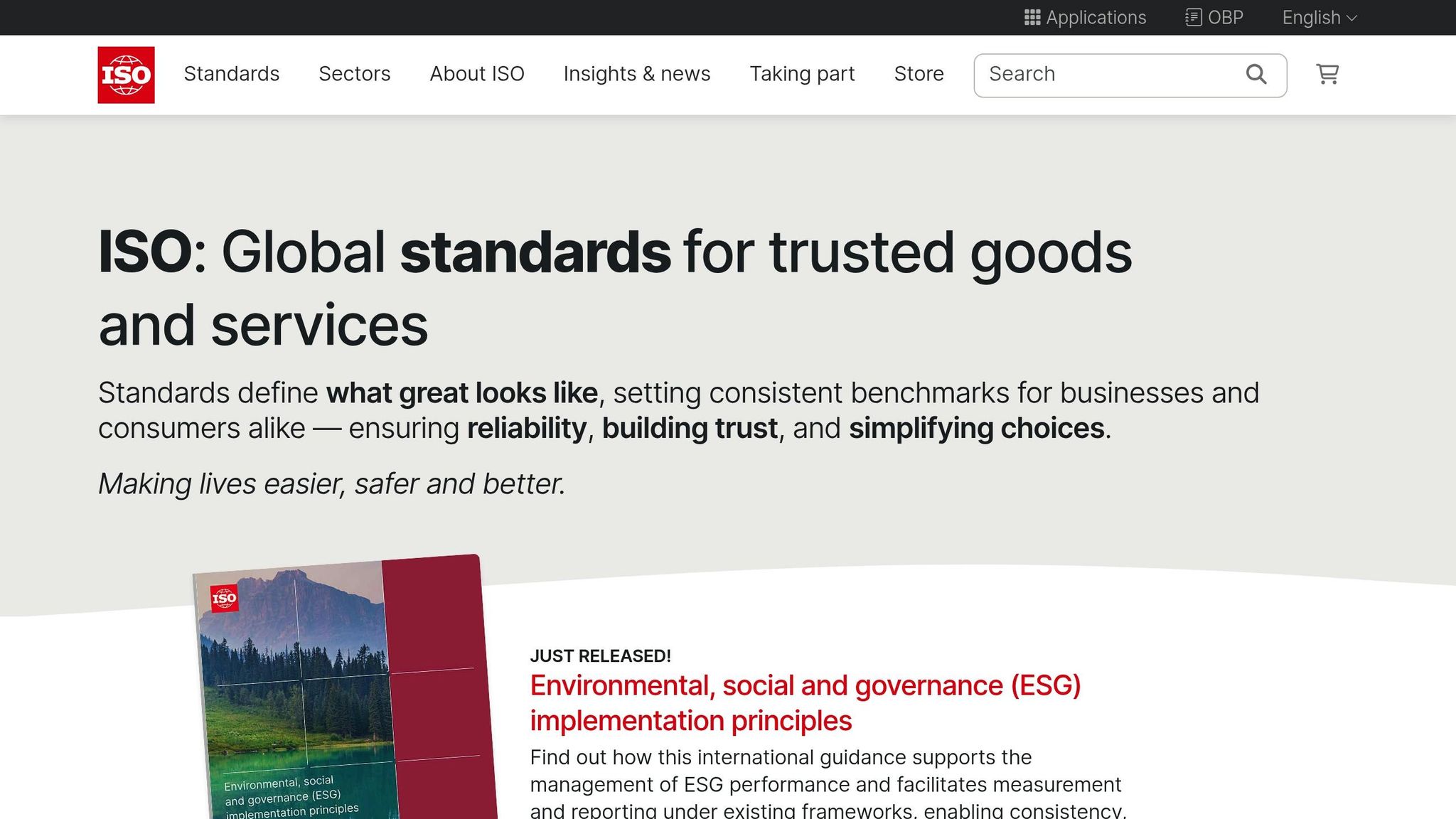

ISO Drawing Standards
Internationally, ISO technical drawing standards offer a universal framework for architectural documentation. Some key standards include:
- ISO 128: General principles for technical drawing presentation
- ISO 129: Guidelines for dimensioning
- ISO 5455: Standards for drawing scales
- ISO 7200: Specifications for title block data fields
These standards complement U.S.-based guidelines and are particularly useful for global projects.
Standards Comparison
Each standard has its strengths, depending on the project’s location and needs. Here’s a quick comparison:
| Feature | AIA Guidelines | NCS Requirements | ISO Standards |
|---|---|---|---|
| Primary Market | U.S. Architecture | U.S. Construction | International |
| Layer Naming | Discipline-specific | Unified system | Tailored to project needs |
| Sheet Organization | Focused on project phases | Based on construction sequence | Neutral for broader use |
For international projects, BIM Heroes’ teams are well-versed in balancing multiple standards, ensuring consistent quality regardless of location. For U.S. projects, combining AIA Guidelines with NCS Requirements provides a reliable framework. Meanwhile, ISO Standards act as a solid foundation for global collaborations, adaptable to local requirements when necessary.
Implementing CAD Standards
Writing Standards Manuals
Create a CAD standards manual that outlines essential guidelines for setup, layer organization, documentation, and quality assurance. Here’s a breakdown of what to include:
| Section | Content | Purpose |
|---|---|---|
| Setup Guidelines | Drawing templates, units, scales | Ensures consistent project setup |
| Layer Standards | Naming conventions, color codes | Keeps files organized |
| Documentation Rules | Title blocks, revision tracking | Simplifies project management |
| Quality Checklist | Review points, common issues | Strengthens quality control |
A well-structured manual helps streamline staff training and ensures consistent quality across projects.
Staff Training Methods
To successfully implement CAD standards, focus on training your team using these methods:
- Initial training: Familiarize staff with company CAD standards.
- Regular refreshers: Conduct sessions to introduce updates or changes.
- Hands-on workshops: Practice applying standards on actual projects.
- Peer reviews: Use team assessments to ensure compliance.
This combination of learning approaches builds confidence and consistency in applying standards.
Quality Review Process
Ensuring high drafting standards involves a structured review process:
- Pre-submission Review: Use a detailed checklist to verify drawings before submission.
- Regular Audits: Examine completed projects to spot compliance issues.
- Feedback Integration: Gather team input to fine-tune the standards.
These steps not only maintain quality but also encourage continuous improvement.
Project Adaptability
After thorough reviews, adjust processes to meet the specific needs of each project. Here’s how:
| Aspect | Standard Approach | Project-Specific Adjustment |
|---|---|---|
| Layer Naming | Company naming system | Modify for client-specific preferences |
| Drawing Setup | Default templates | Customize for unique project demands |
| Documentation | Standard procedures | Adjust for special client requirements |
| Review Process | Regular quality checks | Add extra client review stages if needed |
Being flexible with standards ensures they work effectively for diverse projects. For example, outsourcing to experts like BIM Heroes can bring in specialized knowledge to address both global and local requirements [1].

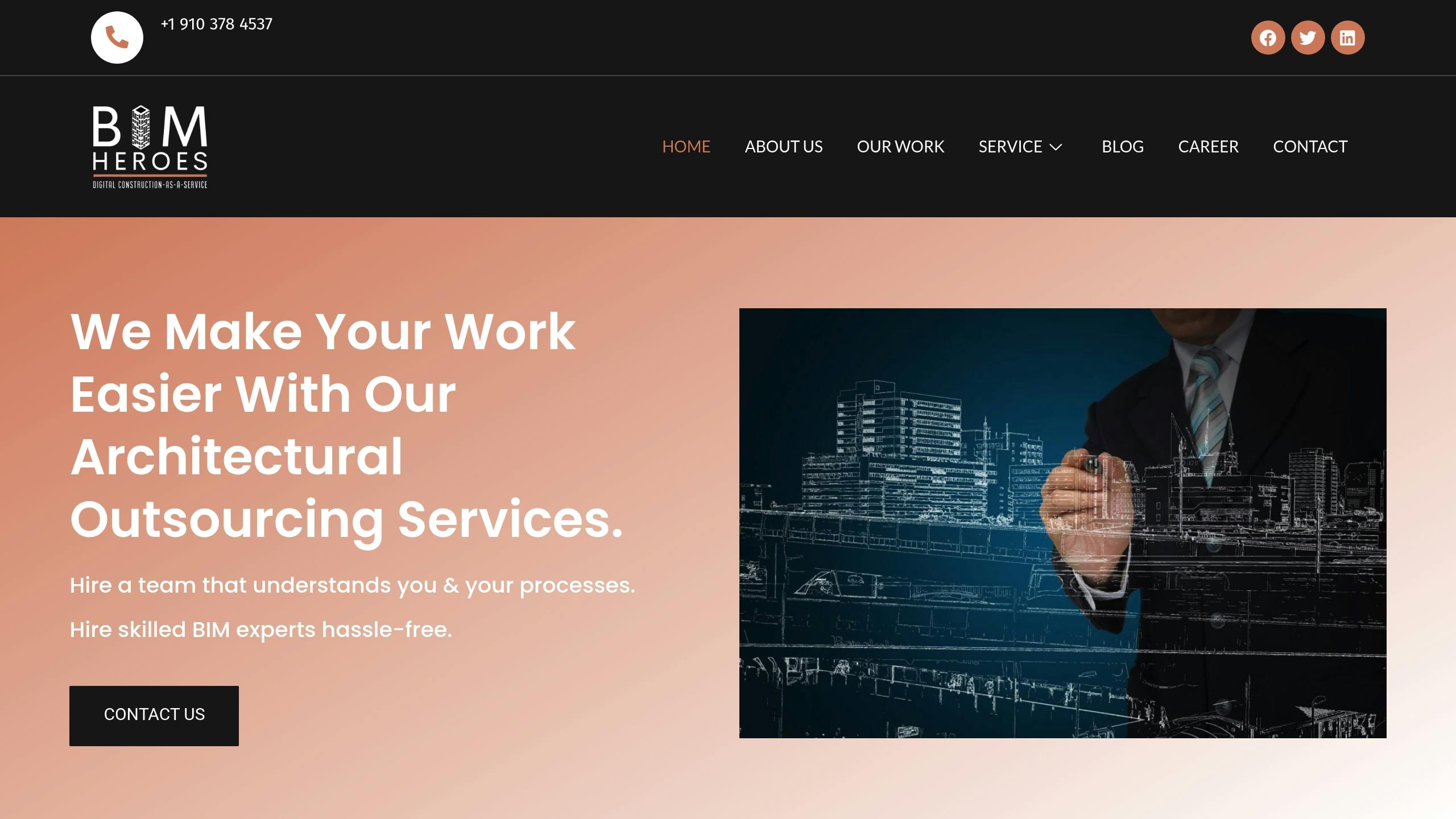

BIM Heroes CAD Services
Services Overview
BIM Heroes provides detailed 2D CAD drafting services tailored for architectural needs. Their main offerings include:
| Service Type | Description | Standards Compliance |
|---|---|---|
| Construction Drawings | Detailed architectural plans and documentation | AIA, NCS, ISO |
| Development Applications | Council-ready documentation for approvals | Local building codes |
| CAD Documentation | Complete drawing sets and technical details | International regulations |
| Architectural Detailing | Accurate technical drawings and specifications | Industry standards |
The team ensures every deliverable meets strict quality standards, giving clients a clear competitive edge.
Client Advantages
BIM Heroes stands out for their CAD expertise and focus on quality:
Technical Expertise
- Skilled professionals well-versed in advanced CAD software
- High-performance workstations for seamless workflows
- In-depth knowledge of US building codes
- Proven success with Development Applications
Quality Control
- Adherence to global standards
- Rigorous quality checks at every stage
- Ongoing training for team members
- Reliable and consistent project delivery
“BIM Heroes were able to assist our Architectural Team on a range of different projects – excelling in their communication, speed, and overall quality of deliverable. Would happily recommend them.” – Director of Architecture, Home Builder in New York [1]
Their combination of technical know-how and a commitment to quality makes them an ideal partner for architectural projects.
Outsourcing Benefits
Outsourcing CAD services to BIM Heroes can simplify workflows and reduce expenses:
| Benefit Area | Impact | Cost Savings |
|---|---|---|
| Resource Efficiency | Avoid hiring and training in-house teams | Save on office setup costs |
| Scalability | Access experts as needed | Flexible costs vs. fixed expenses |
| Core Focus | Prioritize design and client interactions | Streamline operations |
| Technology | Leverage the latest CAD tools and skills | No need for software investments |
Flexible engagement options – Dedicated Team, Fixed Price, or Hourly – let clients pick what works best for their projects. This approach ensures efficient, high-quality CAD drafting solutions.
“Our BIM experts are constantly trained to use the latest technology and are equipped with high-powered workstations, to deliver the desired outcomes with maximum efficiency.” – BIM Heroes [1]
Looking Ahead: CAD Standards
Main Points Review
As drafting practices evolve, today’s CAD standards are increasingly focused on blending traditional methods with modern technologies. This includes integrating 2D CAD drafting with BIM workflows to meet global regulations and embrace advanced tools.
| Standard Area | Current Focus | Implementation Priority |
|---|---|---|
| CAD Technical Needs | BIM-compatible workflows | High |
| Regulatory Compliance | International building codes | Critical |
| Quality Assurance | Automated verification systems | Medium |
| Staff Development | Ongoing technical training | High |
These priorities are shaping the next phase of CAD standards.
Future Developments
Emerging technologies are set to reshape CAD standards further. The growing use of BIM is bridging the gap between 2D documentation and 3D modeling, driving trends like:
- Automated Compliance Checking: Advanced software tools that ensure designs align with current building codes.
- Smart Building Integration: Adjusting CAD standards to include IoT features and sustainable design elements.
Integrating traditional CAD with BIM workflows introduces both challenges and opportunities. To navigate this shift, firms should focus on:
- Updating drafting standards regularly to reflect technological advancements.
- Investing in staff training to keep up with new tools and methods.
- Establishing quality control processes that work across 2D and 3D workflows.
- Modifying standards to support sustainable design practices.
These advancements will enhance quality control processes and improve how teams are trained.
The future of CAD standards will depend on achieving smooth integration between traditional drafting techniques and cutting-edge design practices. Companies that embrace these changes will be well-positioned to meet the industry’s evolving needs.
